Steel Shed Portal Frame Connection Kits* – Our bracket manufacturers investment in the latest technology allows us to provide fast efficient service to a wide range of industries. They have been manufacturing for the portal frame building industry with plating components since the late 1970's. We can supply you with everything from footing brackets up to knee and apex plates, cleats and haunches and everything in between. Their manufacturing capability combined with in house expertise is a great asset to your project.

We can supply a vast range of standard components. Everything from footing brackets to connection plates manufactured for buildings of all sizes and configurations so you can extend your own building or build your own shed DIY.

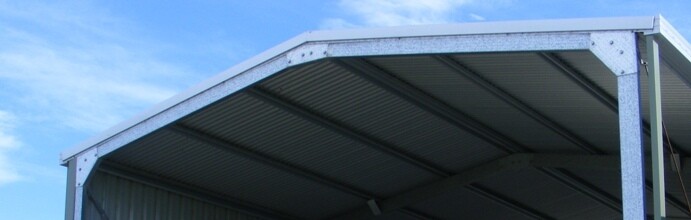

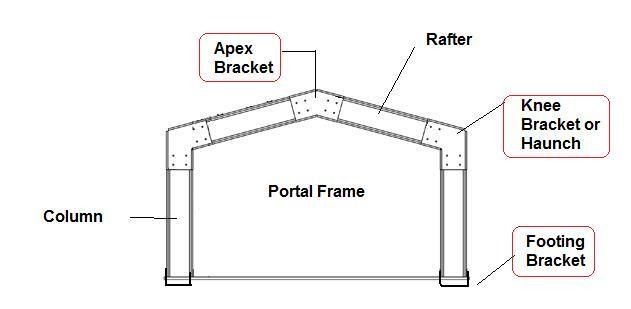

These brackets are designed for Portal Frame buildings: Thats the steel frame section of your shed that consists of 2 columns, 2 rafters, 1 apex and 2 knee brackets and the hold down brackets or feet. The area between two portal frames is known as a bay. A skillion shed has no apex brackets. It has two knees, a up slope and down slope knee. You can shop these knees in our knee plate page and the footings here.

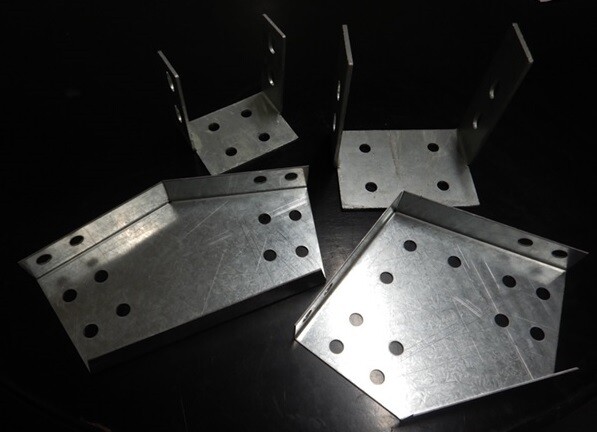

Each Steel Shed Portal Frame Connection Kits come with the following components as standard:

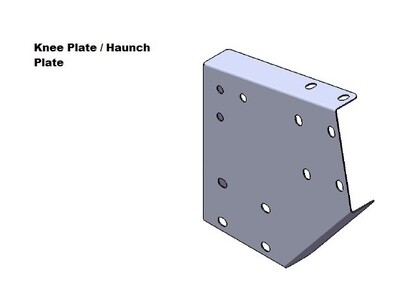

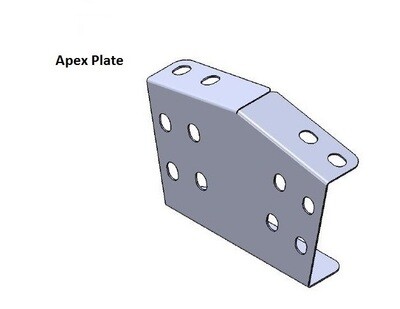

• 2 x Knee Plates (Haunch Brackets) 1 x Apex Plates
• Kits with BF or FIS include footing brackets x 2 (C100, C150, C200 are On Slab Feet and C250 & C300 are Cast in Slab or On Slab Feet)

The plates and brackets are manufactured from:

• G450 Gal Steel
• Knee and apex haunch brackets with a BMT from 1.5mm up to 3mm available.
• Hot Dipped GAL for the Footing brackets
• Footing brackets with a thickness of 5-6mm
• All roof pitches are available (nominate when ordering)
• Suit Australian purlins from Stramit, Lysaght, Metroll, Fielders, Stratco, etc.
• You can price and order columns, rafters & battens here.

Note: When building your own shed frame you should seek the advice of a qualified professional as to the engineering requirements for your site and building design.

If you do not see the combination of Materials you require for your project then please email us at help@shedblog.com.au or contact us here.

Link to Columns & Rafters | Link to Apex Plates page | Link to Knee Plates Page

Link to Battens Page | Link to Base Plates Page | Link to Purlins & Girts page

*PORTAL FRAME KITS ARE MANUFACTURED TO ORDER AND HAVE A 10-15 DAY LEAD TIME PLUS SHIPPING. FREIGHT IS ADDED DURING CHECKOUT.

PEOPLE ALSO ASK

What is a roof pitch?

It is the angle of the roof and required for apex and knee brackets. Typical pitches include 10, 15, 20 degrees

Do your Portal Frame Connections Kit come with bolts?

They do not come with bolts but you can buy bolts here if you wish https://shedblog.com.au/store/Nuts-and-Bolts-p1317... or by emailing your requirements.
